Fannon LightSpeed — dry faster, run cooler.
Patented 24K Goldenrod infrared reflectors focus virtually 100% of the energy right at the paper, so you get faster line speeds with reduced electrical consumption and cool-to-the-touch modules.
Fannon inkjet drying systems
Fannon Products is proud to offer inkjet drying systems to perfectly fit your needs.
With our LightSpeed and Near Infrared models, our drying systems are designed to dry even the most demanding water-based inkjet applications by efficiently transferring energy for faster line speeds, cooler substrates and surrounding equipment, and reduced electrical consumption.

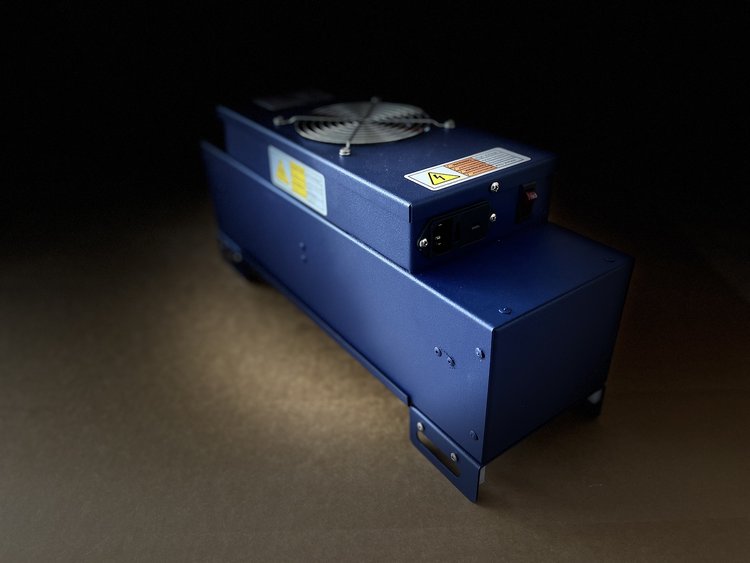

Fannon LightSpeed inkjet drying systems
Fannon LightSpeed inkjet drying systems are designed to dry water based and solvent based inks on all types of glossy and non-glossy substrates. These systems utilize high-efficiency short-wavelength infrared lamps with our patented 24K gold reflector that focuses the infrared energy into the ink pattern.
Fannon infrared dryers work at high speeds for a low cost. Our unique lamps allow ink to dry efficiently, so that less energy is being wasted, and more money stays in your company's pocket.
All Fannon LightSpeed inkjet drying systems utilize their patented, energy efficient, "Goldenrod" infrared lamps, which incorporate a 24K gold reflector that directs and focuses virtually 100% of the infrared energy where it is needed—at the paper.
Advantages of LightSpeed inkjet drying
- Faster line speeds
- Reduced electrical consumption
- Lower belt and surrounding equipment temperatures
- Cool-to-the-touch drying modules
- Safe and comfortable operators
Included with the LightSpeed system
- Drying module, pre-wired power cords with multi-pin quick disconnect
- Fannon "high efficiency" Quartz Infrared lamps w/ 24K gold reflector
- Control system w/ 0–100% output adjustment
- Safety interlock circuit and emergency stop pushbutton
- Quick disconnect package for quick and easy installation
- OPTION: automatic power adjustment via tachometer
Fannon LightSpeed inkjet drying systems — specs
Designed to dry up to a 2" ink pattern
| Model | Watts | Voltage | Amps | Heated Length |
|---|---|---|---|---|
| FP-4000 | 4000 W | 208–240 V | 17 A | 10" |
| FP-6400 | 6400 W | 208–240 V | 27 A | 16" |
| FP-10000 | 10000 W | 208–240 V | 42 A | 25" |
Designed to dry up to a 4.25" ink pattern
| Model | Watts | Voltage | Amps | Heated Length |
|---|---|---|---|---|
| FP-3000 | 3000 W | 208–240 V | 12.5 A | 10" |
| FP-4800 | 4800 W | 208–240 V | 20 A | 16" |
| FP-9000 | 9000 W | 208–240 V | 38 A | 16" |
Designed to dry up to a 5.5"+ ink pattern
| Model | Watts | Voltage | Amps | Heated Length |
|---|---|---|---|---|
| FP-8000 | 8000 W | 208–240 V | 34 A | 16" |
| FP-15000 | 15000 W | 208–240 V | 62 A | 25" |
| FP-21900 | 21900 W | 480 V | 46 A | 38" |
* Also available in 277, 480, 575 Volt
* Custom sizes available upon request
Fannon Near Infrared inkjet drying systems
Fannon Near Infrared inkjet drying systems are designed to dry water based and solvent based inks on all types of glossy and non-glossy substrates. These systems utilize high-efficiency, short-wavelength infrared lamps with our patented 24K gold reflector that focuses the infrared energy into the ink pattern.
Fannon infrared dryers work at high speeds for a low cost. Our unique lamps allow ink to dry efficiently, so that less energy is being wasted, and more money stays in your company's pocket.
All Fannon Near Infrared inkjet drying systems utilize their patented, energy efficient, "Goldenrod" infrared lamps, which incorporate a 24K gold reflector that directs and focuses virtually 100% of the infrared energy where it is needed—at the paper.
Included with Fannon Near Infrared systems
- Drying module, pre-wired power cords with multi-pin quick disconnect
- Fannon "high efficiency" Near Infrared lamps
- Control system w/ 0–100% output adjustment
- Safety interlock circuit and emergency stop pushbutton
- Quick disconnect package for quick and easy electrical installation
- Fannon mounting bracket assembly, complete w/ control panel mount, all required glare reduction shielding, safety tilt switch, and all mounting hardware
- OPTIONAL: automatic power adjustment via tachometer
Fannon Near Infrared inkjet drying systems — specs
Designed to dry up to a 2" ink pattern
| Model | Watts | Voltage | Amps | Heated Length |
|---|---|---|---|---|
| FP-4320-10-2-NI | 4320 W | 208–240 V | 18 A | 10" |
| FP-6480-16-NI | 6480 W | 208–240 V | 27 A | 16" |
Designed to dry up to a 3.25" ink pattern
| Model | Watts | Voltage | Amps | Heated Length |
|---|---|---|---|---|
| FP-2400-6-NI | 2400 W | 208–240 V | 10 A | 6" |
| FP-4320-10-NI | 4320 W | 208–240 V | 18 A | 10" |
| FP-6480-16-NI | 6480 W | 208–240 V | 27 A | 16" |
Designed to dry up to a 4.75" ink pattern
| Model | Watts | Voltage | Amps | Heated Length |
|---|---|---|---|---|
| FP-6480-10-NI | 6480 W | 208–240 V | 27 A | 10" |
| FP-9720-16-NI | 9720 W | 208–240 V | 40 A | 16" |
| FP-10000-25-NI | 10000 W | 208–240 V | 42 A | 25" |
* Also available in 277, 480, 575 Volt
* Custom sizes available upon request
Spec a LightSpeed system for your press.
Tell us your ink pattern, voltage and line speed — we'll recommend the right configuration.
