Cure faster, with far less power.
Fannon UV LED curing systems are extremely efficient and air-cooled, with an LED reflector that focuses UV light only where it's needed — directly at the substrate — for faster line speeds and simplified installation.
Fannon UV LED curing systems
Fannon Products is one of the foremost manufacturers in the LED ink curing industry.
Fannon UV LED systems are extremely efficient, allowing for faster line speeds with less power consumption. This is accomplished using our LED reflector system — focusing the UV light only where it is needed, directly at the substrate.
Advantages of Fannon UV LED curing systems
Available in 3-inch, 6-inch and 9-inch air-cooled modules at 395–405 nm.
FP-120-80x40-395
| Wavelength | 395–405 nm |
|---|---|
| Voltage | 120 V |
| Wattage | 540 W |
| Power intensity | 16 W/cm² |
| Emitting window | 80 × 40 mm (3.15" × 1.57") |
| Transport interlock | 24 VDC or dry contact |
| Cooling | Air cooled |
FP-120-160x40-395
| Wavelength | 395–405 nm |
|---|---|
| Voltage | 120 V |
| Wattage | 1080 W |
| Power intensity | 16 W/cm² |
| Emitting window | 160 × 40 mm (6.30" × 1.57") |
| Transport interlock | 24 VDC or dry contact |
| Cooling | Air cooled |
FP-220-240x40-395
| Wavelength | 395–405 nm |
|---|---|
| Voltage | 220–230 V |
| Wattage | 1620 W |
| Power intensity | 16 W/cm² |
| Emitting window | 240 × 40 mm (9.44" × 1.57") |
| Transport interlock | 24 VDC or dry contact |
| Cooling | Air cooled |

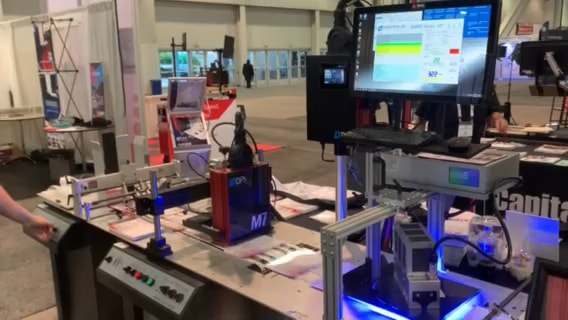

Fannon UV curing systems at work
Watch the video below to see our UV curing systems as they get the job done.
Fannon UV Curing Systems At Work — from Alt Media Studios on Vimeo
Bring UV LED curing to your line.
Tell us your substrate, line speed and web width — we'll recommend the right module.
