Twin-tube quartz — 96% efficient, instant response.
Short- or medium-wave twin-tube lamps in clear 23mm x 11mm or 33mm x 15mm quartz, direct-replacement or custom, with optional integral gold reflector.

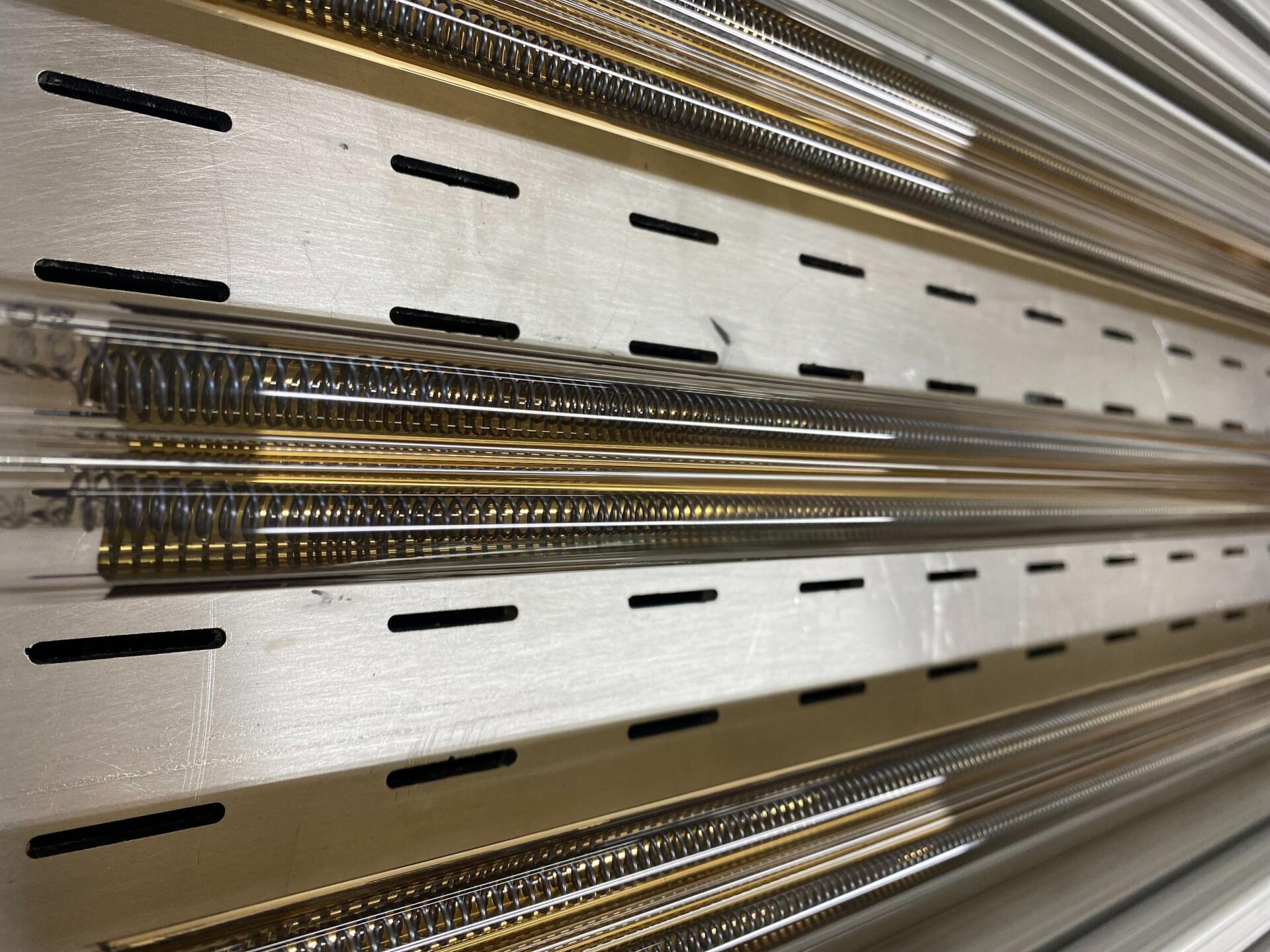

Twin-tube quartz infrared lamps
Fannon Products, LLC offers a complete line of high-quality twin-tube quartz infrared lamps.
These lamps are available in short or medium wavelength and in various lengths, wattages and voltages. Fannon twin-tube quartz infrared lamps are made for direct replacement of any existing equipment, and custom sizes are available upon request. They have 96% radiant efficiency, instant response time, a life expectancy of over 5,000 hours, can come with series or parallel wiring, and with or without our gold reflector.
Short-wave twin-tube quartz infrared lamps
These lamps are available in numerous standard lengths, wattages and voltages, for direct replacement of any existing equipment. Custom sizes are available upon request. Made using clear 23mm x 11mm twin-tube quartz with an integral gold reflector to increase efficiency and make them directional.
- Clear 23mm x 15mm or 33mm x 15mm quartz
- 96% radiant efficiency
- Short-wave or medium-wave infrared
- Instant response time
- Mechanical durability: Good
- Resistance to thermal shock: Good
- Life expectancy: 5000+ hours
- Series or parallel wiring
- With or without gold reflector
The list below are lamps we typically keep in stock and ready to ship. If you don't see the lamp you require, give us a call and we will manufacture a lamp to your specifications.
| Fannon Model | Wattage | Voltage | OAL | HL | Quartz size | Alt ID | Alt Description |
|---|---|---|---|---|---|---|---|
| FP-10095 | 450 | 115 | 72mm (2.83") | 1.0" | 23x11mm | 2642069 | KW-L203_1600W-120V-ULB_hor |
| FP-10115F | 1600 | 120 | 10.55" | 8" | 23x11mm | 2266347 | KW-L203_1600W-120V-ULB_hor |
| FP-10117F | 800 | 120 | 6.55" | 4" | 23x11mm | 2266348 | KW-L203_800W-120V-UL-B_hor |
| FP-10309 | 600 | 115 | 5.71" | 3.15" | 23x11mm | KW-L80_600W-115V-UL-B_uni | |
| FP-10311 | 1200 | 230 | 11.81" | 7.87" | 23x11mm | KW-L200_1200W-230V-ULB_uni | |
| FFP-60008 | 2100 | 480 | 23x11mm | 2266352 | KW-L185_1100W-230V-ULB_uni | ||
| FP-60010 | 6000 | 480 | 42.52" | 23x11mm | 2266551 | KW-L1000_4000W-400V-UL-B_hor | |
| FP-60033 | 250 | 57.5 | 3.15" - 90° bend | 1.97" | 23x11mm | 2266508 | KW-L500_3000W-480V-UL-C_hor |
| FP-60043 | 6000 | 480 | 42.52" | 39.37" | 23x11mm | 2266507 | KW-L340_2100W-480V-UL-B_hor |
| FP-60044 | 3000 | 480 | 22.24" | 19.68" | 23x11mm | 2266349 | KW-L340_2040W-230V-UL-B_uni |
| FP-60045 | 2100 | 480 | 15.74" | 13.38" | 23x11mm | 2266350 | KW-L340_2100W-480V-UL-B_hor |
| FP-60050 | 2040 | 230 | 15.94" | 13.38" | 23x11mm | 2266351 | KW-L340_2040W-230V-UL-B_uni |
| FP-60051 | 3000 | 230 | 25.59" | 19.68" | 23x11mm | 2266353 | KW-L500_3000W-230V-UL-C_hor |
| FP-60052 | 4200 | 230 | 33.46" | 27.55" | 23x11mm | KW-L700_4200W-230V-UL-C_hor | |
| FP-60053 | 1100 | 230 | 11.41" | 7.28" | 23x11mm | KW-L185_1100W-230V-ULB_uni | |
| FP-60068 | 250 | 240 | 90° bent lamp | 23x11mm | |||
| FP-60070 | 4190 | 480 | 30.71" | 23x11mm | |||
| FP-60090 | 1500 | 240 | 23x11mm | ||||
| FP-60091 | 1500 | 240 | 23x11mm | ||||
| FP-60102 | 3000 | 400 | 23.82" | 23x11mm |

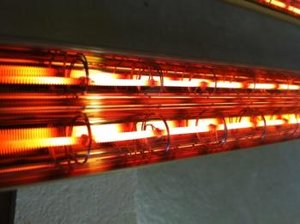

Medium-wave twin-tube quartz infrared lamps
Fannon's Medium-Wave Twin-Tube Quartz Infrared Lamps are customizable and can be created in almost any length, wattage, voltage and wiring configuration. Our "figure 8" clear quartz, 33mm x 15mm, is available with or without an integral gold reflector.
To order, provide
- Exact overall length of the lamp "A"
- Heated length "B"
- Wattage
- Voltage
- Series or parallel wiring
- Horizontal or vertical operation
Don't see your twin-tube lamp?
We manufacture to your exact specifications — call or send your details.
