Exact-OEM lamps for every Speedmaster press.
Medium-wave, fast medium-wave and short-wave twin-tube infrared lamps in 23mm x 11mm and 33mm x 15mm quartz, with 23K gold or white-oxide reflectors.

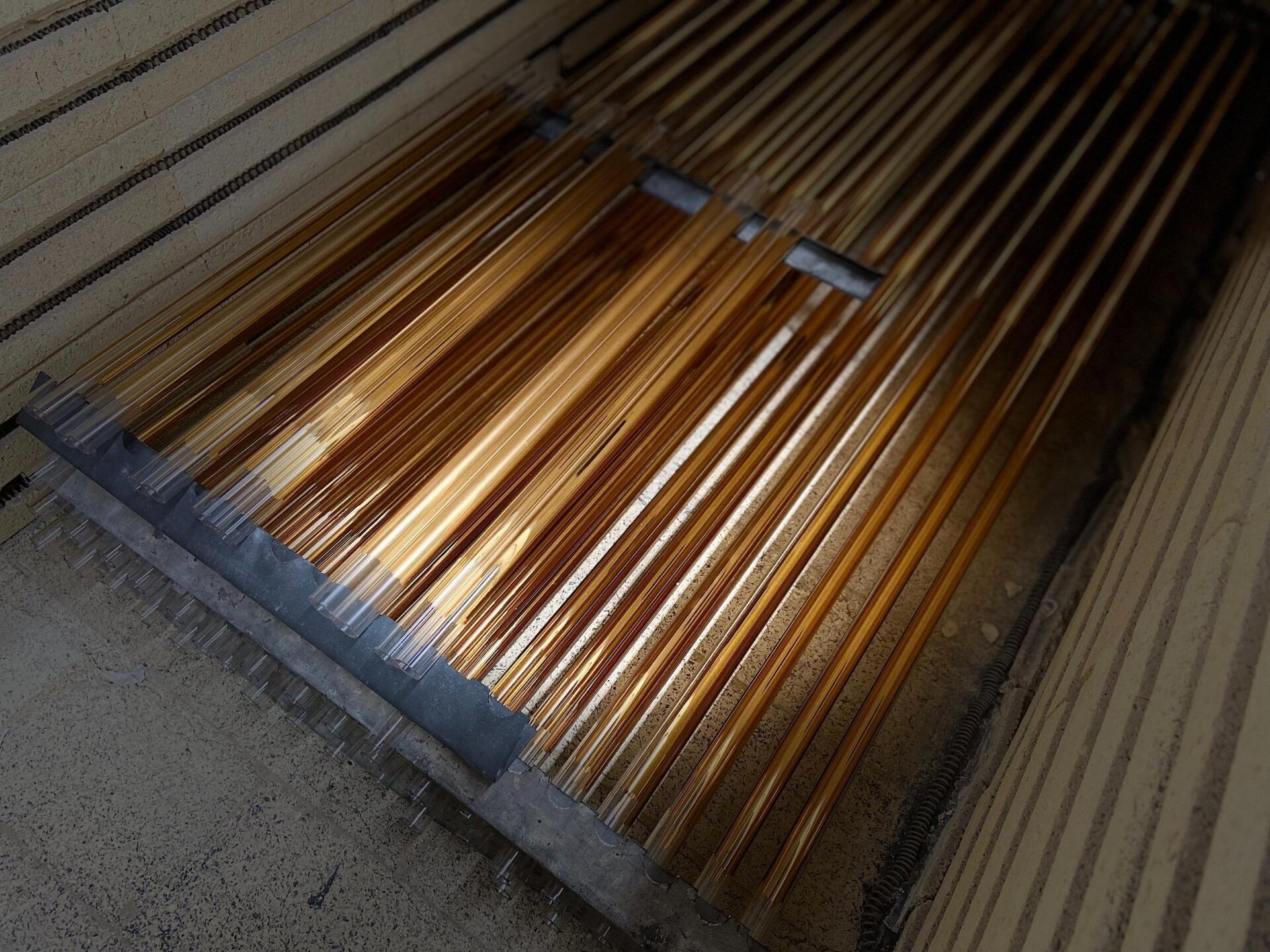

Heidelberg replacement infrared lamps
Fannon Products is dedicated to providing the highest quality twin-tube quartz infrared lamps on the market. We manufacture Medium-wave, Fast medium-wave and Short-wave twin-tube infrared lamps in both 23mm x 11mm and 33mm x 15mm quartz. Our lamps can be made with a high-temperature white oxide reflector, high-efficiency 23K gold reflector, or bare quartz.
Our lamps are high-quality direct replacements made to the exact OEM specifications for Heidelberg products. Additionally, Fannon manufactures lamps for virtually ALL competitors including but not limited to: Tempco, Anderson Thermal, DryStar, Eltosch Grafix, Heidelberg, Helios, Italquartz, Heraeus and Emitted Energy. We consistently provide significant cost savings and, more importantly, we hold lamps in stock to ensure timely delivery.
The following is a list of Fannon replacement lamps commonly used in Heidelberg Speedmaster 74, Speedmaster 52, Speedmaster 102, Speedmaster 72 and Heidelberg XL105 models.
Speedmaster 74 replacement lamps
Speedmaster 74 — FP-6953
- Short-wave, 23mm x 11mm quartz w/ gold reflector
- 6950 Watt, 400 Volt
- 900mm (35.43") OAL
- Heated Channel #1: 750mm (29.52")
- Heated Channel #2: 540mm (21.25")
- Type H: Staggered coils, wired parallel, 500mm (19.68") leads
- Used in: Speedmaster 74 (Post 98), CD74 (Post 98), Graphix Dryer Lamp #M6.170.0301/01
Speedmaster 74 — FP-2523
- Fast Medium-wave, 33mm x 15mm quartz w/ gold reflector
- 4200 Watt, 480 Volt
- 820mm (32.20") OAL
- Heated Channel #1: 750mm (29.52")
- Heated Channel #2: 750mm (29.52")
- Type B: Full coils, wired series, 500mm (19.68") leads
- Used in: Grafix SHS Dryer (Post 97), Speedmaster 74/CD74 (Post 97)
Speedmaster 52 replacement lamps
Speedmaster 52 / MO — FP-3352
- Short-wave, 23mm x 11mm quartz w/ gold reflector
- 3300 Watt, 415 Volt
- 740mm (29.13") OAL
- Heated Channel #1: 670mm (26.37")
- Heated Channel #2: 670mm (26.37")
- Type B: Full coils, wired series, 500mm (19.68") leads
- Used in: Speedmaster 52, SM52, Heidelberg MO, DryStar Dryer
Speedmaster 52 / MO — DBG-28800
- Medium-wave, 23mm x 11mm clear quartz w/ gold reflector
- 1800 Watt, 415 Volt
- 720mm (28.34") OAL
- Heated Channel #1: 600mm (23.62")
- Heated Channel #2: 600mm (23.62")
- Type B: Wired series, 500mm (19.68") leads
- Note: Heraeus #H2130001, Speedmaster 52 w/ Grafix IR Dryer Medium-Wave
Speedmaster 102 replacement lamps
Speedmaster 102 — FP-3552
- Short-wave, 23mm x 11mm quartz w/ gold reflector
- 3500 Watt, 415 Volt
- 1100mm (43.30") OAL
- Heated Channel #1: 960mm (37.79")
- Type A: Single barrel, wired series, 500mm (19.68") leads
- Used in: Speedmaster 102 / CD102 (pre 97)
Speedmaster 102 — FP-5454
- Short-wave, 23mm x 11mm quartz w/ gold reflector
- 5400 Watt, 400 Volt
- 1200mm (47.24") OAL
- Heated Channel #1: 740mm (29.13")
- Heated Channel #2: 370mm (14.56")
- Type H: Staggered coils, wired parallel
- Used in: Speedmaster 102 (pre 97), DryStar Dryer
Speedmaster 102 — FP-6254
- Short-wave, 23mm x 11mm quartz w/ gold reflector
- 3500 Watt, 415 Volt
- 1100mm (43.30") OAL
- Heated Channel #1: 960mm (37.79")
- Type A: Single barrel, wired series, 500mm (19.68") leads
- Used in: Speedmaster 102 / CD102 (pre 97)
Speedmaster 102 — FP-10097
- Fast Medium-wave, 33mm x 15mm quartz w/ gold reflector
- 6000 Watt, 480 Volt
- 1125mm (44.29") OAL
- Heated Channel #1: 1016mm (40.00")
- Heated Channel #2: 1016mm (40.00")
- Type B: Full coils, wired series, 482.6mm (19.00") leads
- Used in: SM102-FMW-B, Post 1997, Grafix SHS Dryer
Speedmaster 102 — DBG-43800
- Standard Medium-wave, 33mm x 15mm quartz w/ gold reflector
- 2500 Watt, 415 Volt
- 1100mm (43.30") OAL
- Heated Channel #1: 960mm (37.79")
- Heated Channel #2: 960mm (37.79")
- Type B: Full coils, wired series, 500mm (19.68") leads
- Used in: Speedmaster 102 (till mid 97), MAN Roland 704
Speedmaster 72 and XL105 replacement lamps
Speedmaster 72 — FP-3555
- Short-wave, 23mm x 11mm quartz w/ gold reflector
- 3500 Watt, 415 Volt
- 800mm (31.49") OAL
- Heated Channel #1: 730mm (28.74")
- Heated Channel #2: 730mm (28.74")
- Type B: Full coils, wired series, 500mm (19.68") leads
- Used in: Speedmaster 72 (pre 97), SM-72, Speedmaster 74 (pre 97)
Speedmaster 72 — DBG-31800
- Standard Medium-wave, 33mm x 15mm quartz w/ gold reflector
- 1900 Watt, 415 Volt
- 800mm (31.49") OAL
- Heated Channel #1: 730mm (28.74")
- Heated Channel #2: 730mm (28.74")
- Type B: Full coils, wired series
- Used in: Speedmaster 72+74 / Grafix dryer, SM-72
Heidelberg XL105 — FP-6254
- Fast Medium-wave, 33mm x 15mm quartz w/ gold reflector
- 6200 Watt, 400 Volt
- 1160mm (45.66") OAL
- Heated Channel #1: 1070mm (42.32")
- Heated Channel #2: 100/50/100mm
- Type G: Staggered coils, wired series, 100mm (3.93") leads
- Used in: Speedmaster 102/CD102 (post 97), XL105, DryStar 3000
Reflector types & wiring configurations
All Fannon twin tubes can be fitted with a 23K gold reflector, white oxide reflector, or left clear to utilize a secondary reflector. The twin tubes can be made in many configurations with respect to heated lengths, lead-wire lengths, and series or parallel connection. Series connection has lead wires exiting one end of the lamp; parallel connection has leads exiting both ends.
Short-wave vs medium-wave response time
Short-wave infrared lamps and Fast Response Medium-wave infrared lamps typically use a tungsten coil that provides instant on/off control. Standard Medium-wave lamps use an iron-chromium-aluminum coil — a higher-mass, slower-response coil. This is a very cost-effective alternative to the tungsten coil if response time is not critical.
