Medium-wave lamps built to your exact spec.
Cost-effective, long-life medium-wave quartz lamps in virtually any length, wattage and voltage — with fast 30-second heat-up/cool-down and optional 24K gold reflector.

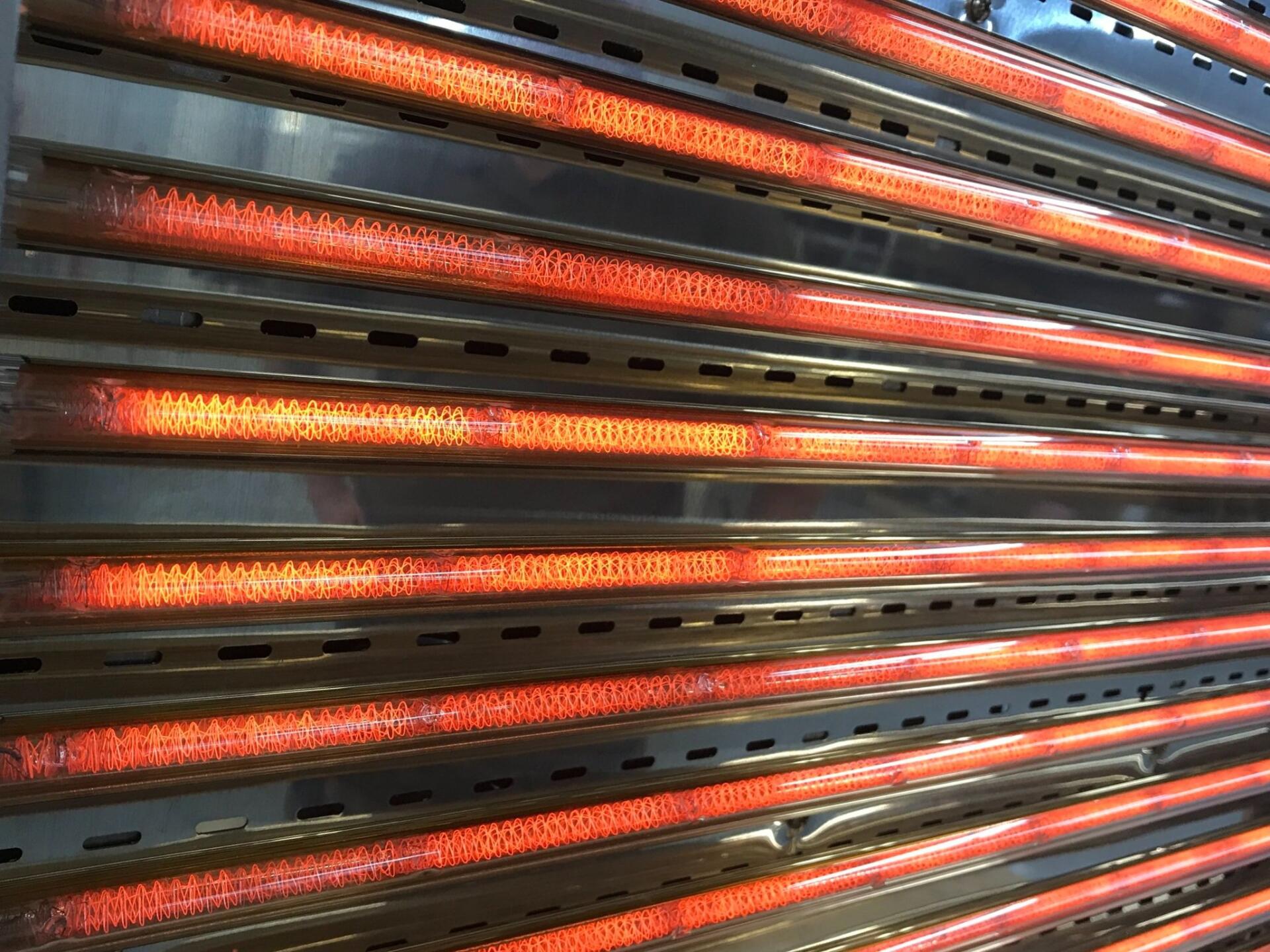

Medium-wave quartz replacement infrared lamps
Fannon Products manufactures standard medium-wave quartz infrared lamps in virtually any length, wattage and voltage for new applications or direct replacement into existing equipment.
Our medium-wave quartz infrared lamps are cost-effective with a long life and good mechanical durability. They can be made with clear or translucent quartz, in 5/8", 1/2" or 3/8" O.D. quartz, and as a standard lamp or with a 24K gold reflector. They can be manufactured to operate in vertical and/or horizontal orientation.
Enjoy multiple end-cap terminations and fast heat-up and cool-down times of 30 seconds or less. All of our lamps are manufactured and shipped from our facility in Algonac, Michigan.

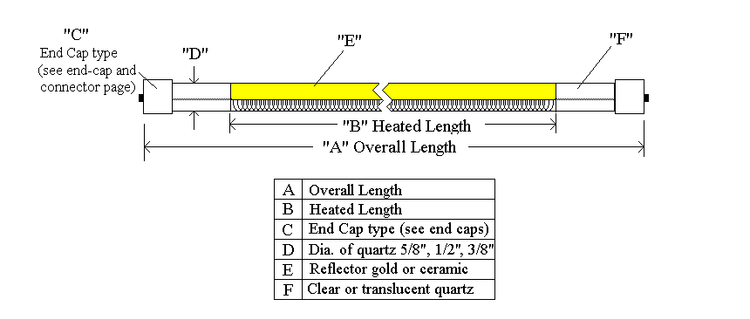

The following information is required
- "A" dimension (Overall Length)
- "B" dimension (Heated Length)
- Wattage
- Voltage
- End-cap type (see end-cap & connector page)
- Diameter of quartz: 5/8", 1/2", 3/8"
- Vertical or horizontal operation
- Reflector (yes/no)
- Reflector type (Gold / White Oxide)
Fannon Instant ON/OFF medium-wave infrared lamps
In applications where medium-wave infrared is required and the thermal response of the lamp is critical, Fannon Products manufactures Instant Response Medium-Wave Infrared Lamps. These lamps are available in standard clear quartz or can be made directional with a 24K gold or white-oxide reflector.
These lamps can be made in virtually any length (under 40"), wattage and voltage combination.
The following information is required
- "A" dimension (Overall Length)
- "B" dimension (Heated Length)
- Wattage
- Voltage
- End-cap type (see end-cap & connector page)
- Diameter of quartz: 5/8", 1/2", 3/8"
- Vertical or horizontal operation
- Reflector (yes/no)
- Reflector type (Gold / White Oxide)
Spec a medium-wave lamp
Send us your A/B dimensions, wattage and voltage and we'll build it.
