120 Volt 2000 Watt Heating Elements

At 120 volts, a 2000 watt heater draws approximately 16.7 amps (Amps = Watts ÷ Volts). At 240 volts, the same 2000W element draws only about 8.3 amps. Always verify the operating voltage of your specific lamp or heater before sizing wiring and overcurrent protection to ensure safe and code-compliant installation.

For a 2000 watt heater operating at 120 volts drawing approximately 16.7 amps, the NEC requires a circuit breaker rated at 125% of continuous load — meaning a minimum 20-amp breaker on a dedicated 20-amp circuit. At 240 volts, a 15-amp breaker is typically sufficient. Always consult a licensed electrician and follow local electrical codes.

Fannon Products' 120V infrared heating elements are rated for 5000+ hours of operation. Life expectancy can be extended by avoiding thermal shock, operating within rated voltage, and ensuring proper mounting orientation. Medium-wave lamps with good thermal shock resistance are particularly well-suited for applications involving frequent on/off cycling.

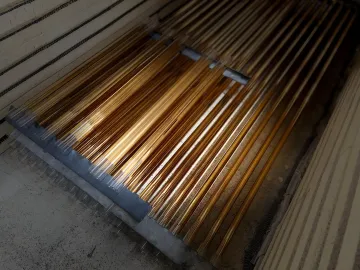

Yes. Fannon Products manufactures direct replacement lamps to exact OEM size and electrical specifications for leading brands including Solaira Alpha, Riviera Series, and Fostoria MM, FFH, CH, Trimline, and OCH Series heaters. Models are available at 120V for direct drop-in replacement without modification to your existing heater unit.

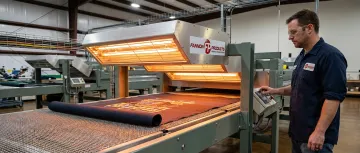

Short-wave infrared lamps operate at higher temperatures (up to 4100°F color temperature) with instant response and are ideal for high-intensity industrial processes. Medium-wave lamps operate at lower temperatures and are less color-sensitive, making them preferred for comfort heating and screen printing applications involving varied ink colors and plastisols.

Yes. Fannon Products can manufacture medium-wave and short-wave infrared lamps in virtually any length, wattage, and voltage combination, including 120V configurations. Reflector options include clear quartz, 24K gold reflector, or white oxide reflector. Contact Fannon's technical team at 810-794-2000 or sales@fannonir.com to discuss custom specifications.
