UV LED Drying Systems for Flexo Printing

The UV LED curing systems are available in three modular sizes: 3-inch (80 x 40mm emitting window, 540W), 6-inch (160 x 40mm, 1080W), and 9-inch (240 x 40mm, 1620W). This range allows printers to select the module that best matches their press width and production throughput requirements.

All three models in the UV LED curing system range use an air-cooled design. Air cooling simplifies installation significantly — there is no need for water lines, chillers, or additional plumbing infrastructure, making these units well-suited for retrofitting into existing press lines or new standalone installations.

Each model delivers a power intensity of 16W/cm², regardless of module size. This consistent, high-density output ensures effective ink curing across 3-inch, 6-inch, and 9-inch configurations, supporting faster press line speeds and reducing the energy consumption compared to traditional UV mercury lamp systems.

The 3-inch (FP-120-80x40-395) and 6-inch (FP-120-160x40-395) models operate on 120 Volt power, while the 9-inch model (FP-220-240x40-395) operates on 220–230 Volt. This provides flexibility for both North American and international facility electrical configurations.

Yes. The systems support both 24 VDC and dry contact transport interlock options, making integration with existing press control systems straightforward. The modular sizing and standard configurations are compatible with standalone new installations as well as retrofits into currently operating flexo, screen, and inkjet printing lines.

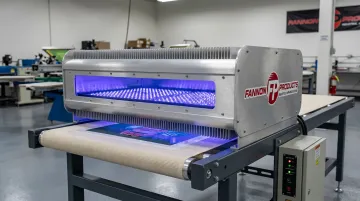

These UV LED curing systems are designed for commercial and industrial printing operations including flexo printing, screen printing, and inkjet printing. They are also applicable to paint and coating curing in automotive and manufacturing environments. Any process requiring precise, energy-efficient UV curing of reactive inks or coatings can benefit.
