Clear Quartz Lamps

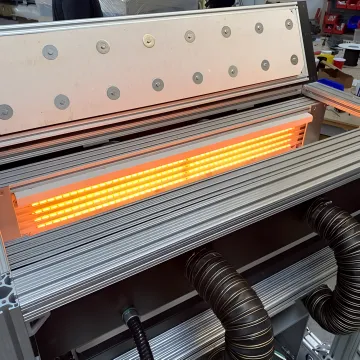

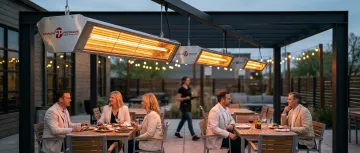

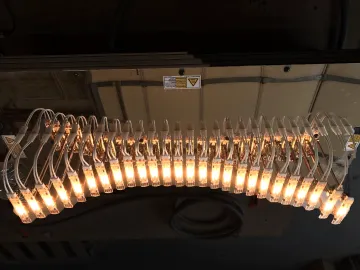

Clear quartz infrared lamps are ideal when omnidirectional heat emission is needed or when an external reflector system is already in place. They are commonly used in industrial process heating, inkjet drying, comfort heating systems, printing equipment, automotive curing, and glass-ceramics processing. The clear envelope allows unrestricted infrared output in all directions without an integral reflector.

Clear quartz lamps emit infrared energy in all directions and rely on external reflectors for directional control. Lamps with integral 24K gold or white oxide reflectors focus energy directly at the target, saving up to 23.5% in energy costs and keeping surrounding equipment cooler. Clear quartz is preferred when external reflectors are already present or omnidirectional heating is required.

Fannon Products offers clear quartz infrared lamps ranging from 250W to over 10,000W. Voltage options include 115V, 120V, 208V, 230V, 240V, 277V, 400V, 415V, 480V, 575V, and 600V. Custom combinations of length, wattage, and voltage are available to match virtually any process or replacement requirement.

Clear quartz infrared lamps from Fannon Products are rated for 5,000+ hours of operation. They are engineered with good resistance to thermal shock, ensuring reliable performance through repeated heating and cooling cycles. Proper installation and operation within rated specifications will help achieve maximum service life.

Yes. Fannon Products manufactures clear quartz infrared lamps as direct replacements for equipment from Fostoria, Solaira, Heidelberg, M&R, Tempco, Anderson Thermal, DryStar, Eltosch Grafix, Heraeus, and many others — all made to exact OEM size and electrical specifications. Most replacement models are held in stock for same or next-day shipment.

Clear quartz infrared lamps are available in multiple tube diameters including 3/8 inch, 1/2 inch, and 5/8 inch O.D. for standard single-tube designs, as well as 23mm x 11mm and 33mm x 15mm for twin-tube configurations. Custom sizes and heated lengths from under 1 inch to over 60 inches can be manufactured upon request.
