Quartz Infrared Heaters

Short-wave infrared lamps offer instant thermal response and operate at higher temperatures (up to 4100°F color temperature), making them ideal for rapid curing and drying. Medium-wave lamps heat up slightly slower but are less color-sensitive, making them preferred for screen printing with plastisol inks and applications requiring gentler, more penetrating heat.

Fannon's quartz infrared lamps are rated for 5,000+ hours of operation with good resistance to thermal shock. Life expectancy varies based on operating conditions, duty cycle, and application. Proper installation, correct voltage matching, and avoiding mechanical vibration help maximize lamp service life.

Fannon Products offers quartz infrared lamps ranging from 250W to over 10,000W. Voltage options include 115V, 120V, 208V, 230V, 240V, 277V, 400V, 415V, 480V, 575V, and 600V. Custom wattage and voltage combinations can also be manufactured to your specific process requirements.

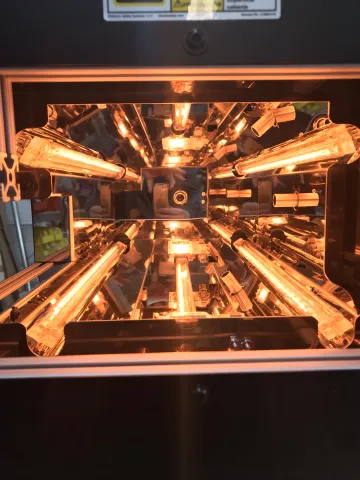

Yes. Fannon's custom infrared systems are specifically designed for automotive applications including primer coat, color coat, clear coat, and powder coat curing, as well as seat de-wrinkling and headliner forming. These systems deliver faster cycle times and improved coating quality compared to conventional convection ovens.

Yes. Fannon Products manufactures direct replacement infrared lamps to exact OEM specifications for Fostoria, Solaira, Heidelberg Speedmaster, M&R flash dryers, HP 3D printers, and many other brands. Replacement lamps are typically held in stock and ready to ship within one to two business days.

The integral 24K gold reflector directs virtually 100% of the infrared energy toward the workpiece, eliminating the need for a secondary external reflector. This directional design saves approximately 23.5% in energy costs compared to standard lamps, keeps surrounding equipment cooler, and improves overall process efficiency and control.
