300W Quartz Halogen Lamps

A 300W quartz halogen bulb produces approximately 5,000–6,000 lumens of visible light. In industrial infrared applications, brightness is secondary to radiant heat output — these lamps operate at filament temperatures up to 4,000°F, delivering intense short-wave or medium-wave infrared energy for drying, curing, and forming processes.

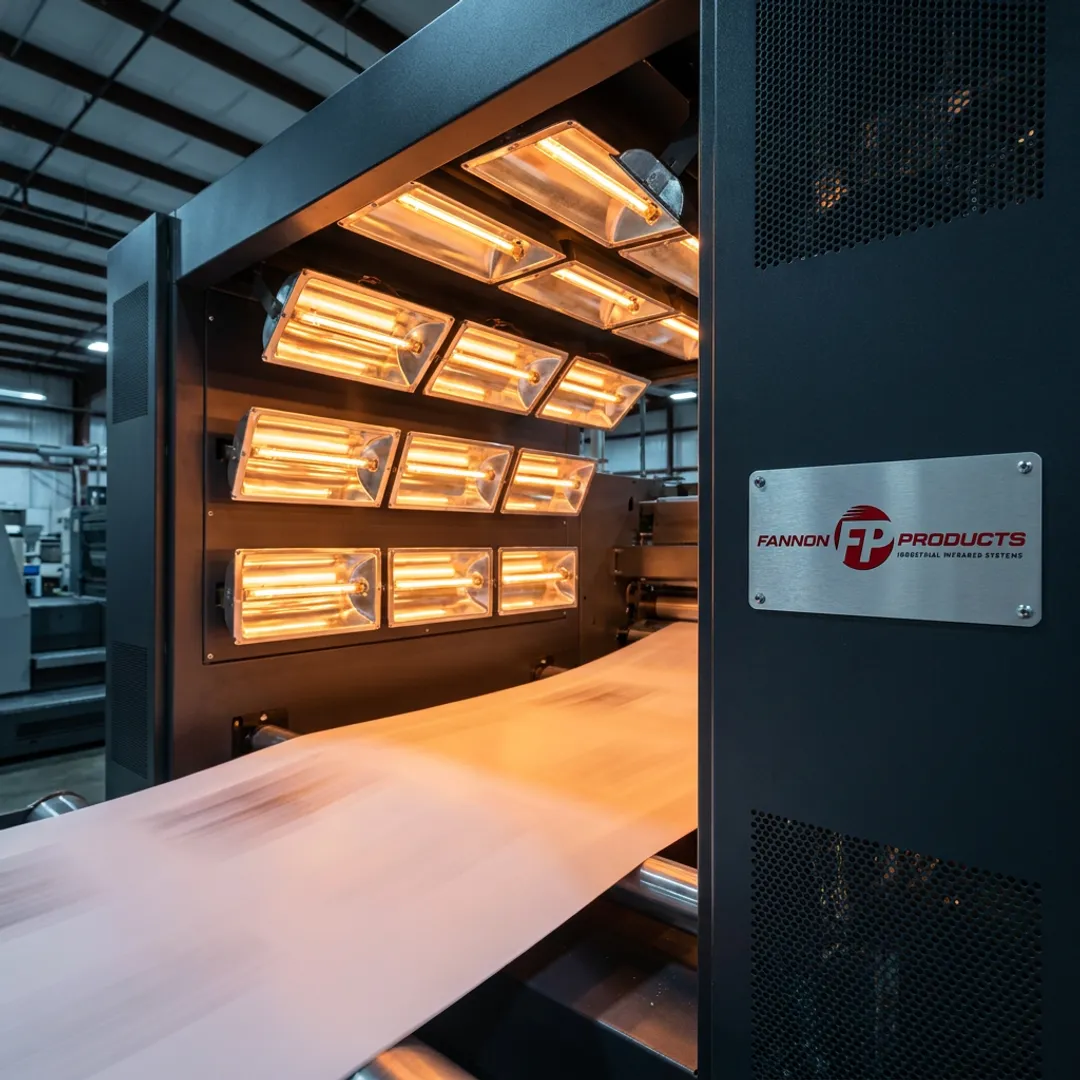

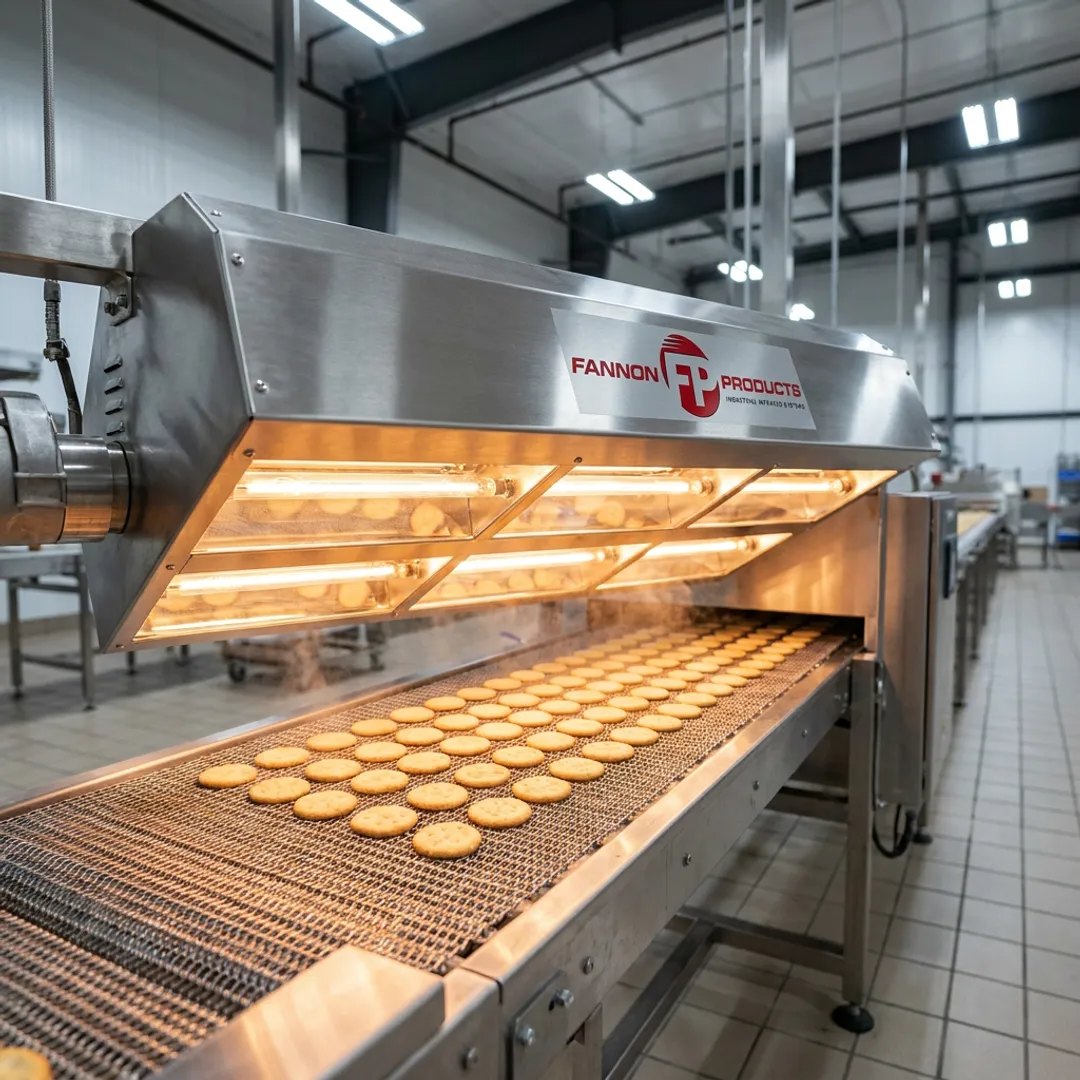

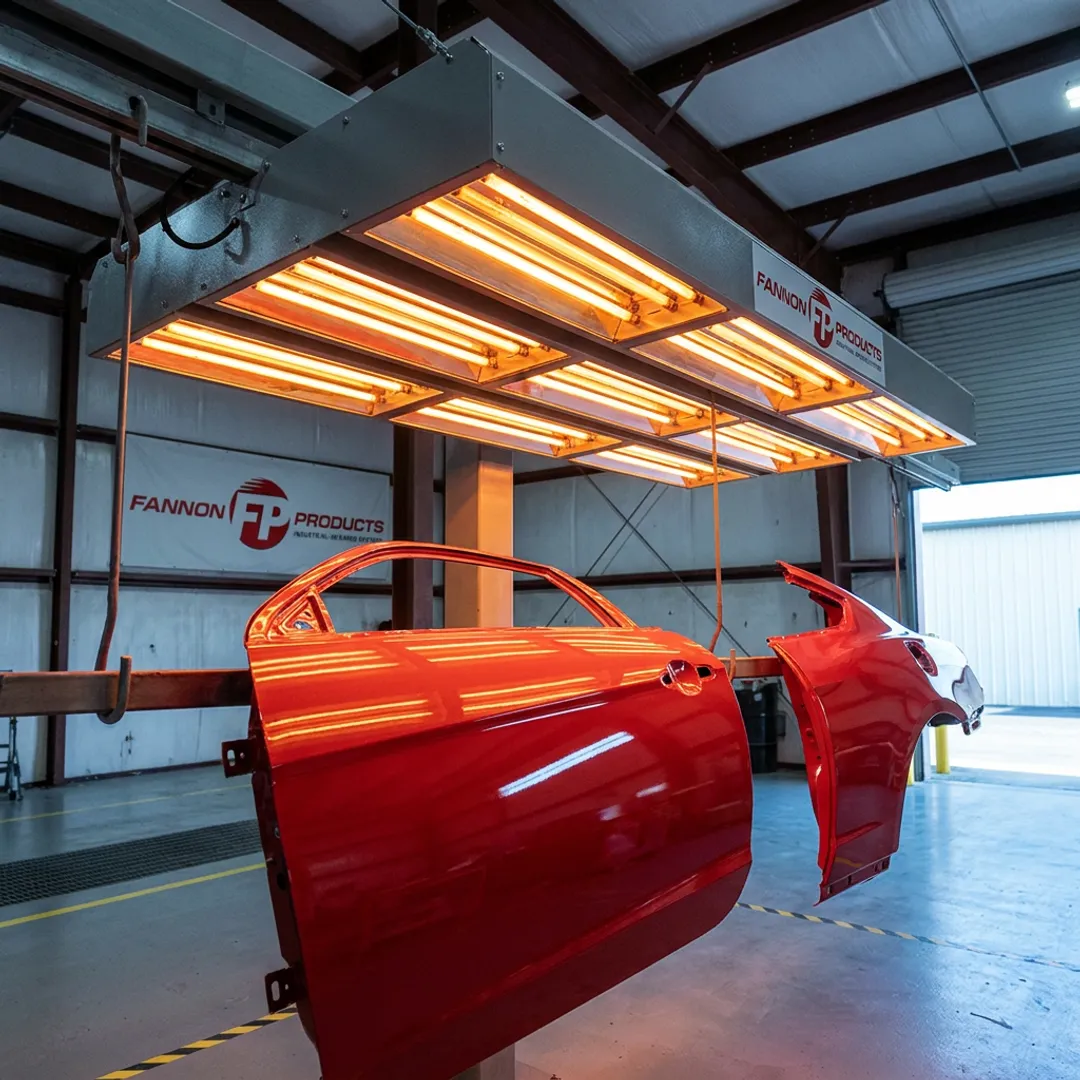

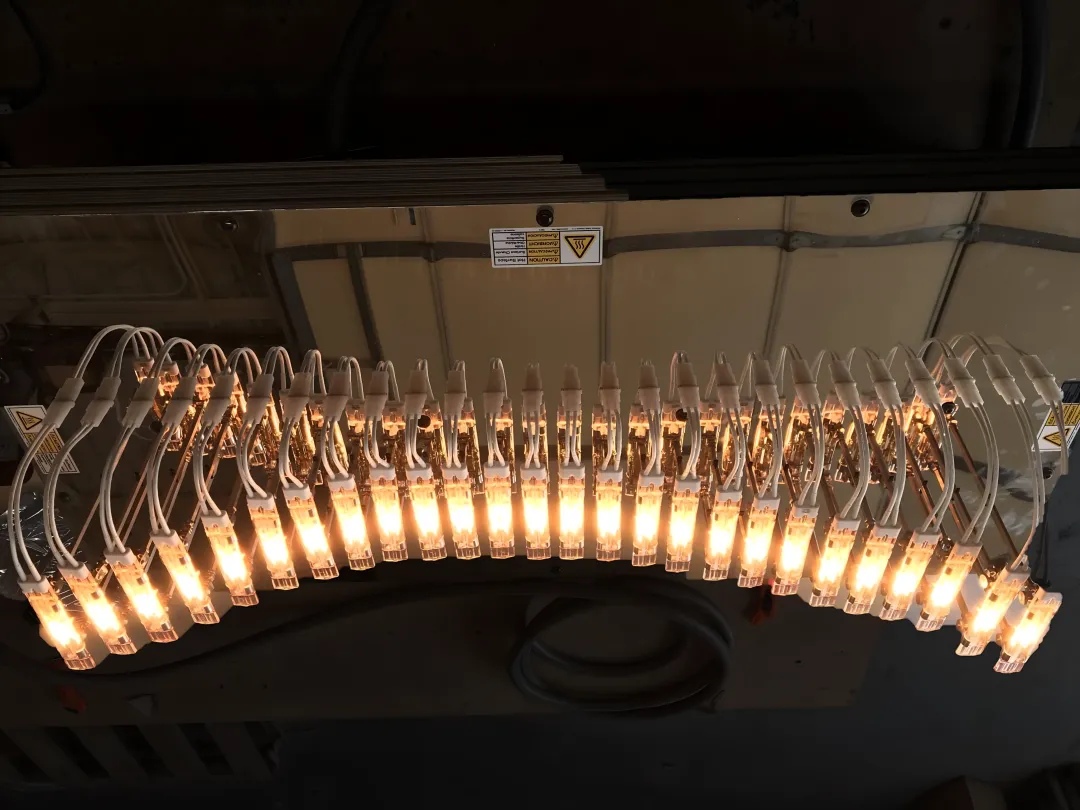

In industrial settings, 300W quartz halogen lamps are used for process heating, drying, curing, and forming applications. Specific uses include automotive primer and powder coat curing, inkjet and ink drying in printing, plastic welding and forming, food baking and dehydrating, electronics reflow soldering, and textile web drying and finishing.

Fannon Products offers 300W quartz halogen lamps in both short-wave and medium-wave infrared configurations. Short-wave lamps provide deep material penetration and are ideal for applications like automotive curing and plastics forming. Medium-wave lamps are suited for surface-level heating tasks and are available in an instant-response version for applications where lamp response time is critical. Twin-tube configurations are available in both wave types.

Yes. Fannon Products manufactures quartz halogen lamps in virtually any length, wattage, and voltage combination. Available voltage options include 115V, 120V, 208V, 230V, 240V, 277V, 400V, 415V, 480V, 575V, and 600V. Custom lengths, wiring configurations (series or parallel), and reflector types are all available upon request with fast typical lead times.

Fannon Products offers 300W quartz halogen lamps with three reflector options: an integral 24K gold reflector (Goldenrod), a white oxide reflector, or clear quartz with no reflector. The gold reflector option saves 23.5% in energy costs by directing infrared energy precisely toward the work surface without a secondary reflector.

Fannon Products' quartz halogen infrared lamps have a life expectancy of over 5,000 hours. Their quartz construction provides good resistance to thermal shock, and the instant on/off response reduces thermal stress during operation. Proper mounting orientation — horizontal or vertical — also helps maximize service life.

Fannon Products' 300W quartz halogen lamps are UL Listed certified and carry an American Made Quality designation. The lamps have been manufactured in the United States since 1957, reflecting nearly 70 years of infrared lamp manufacturing expertise and adherence to quality and safety standards.
