OmniCure UV Curing Systems

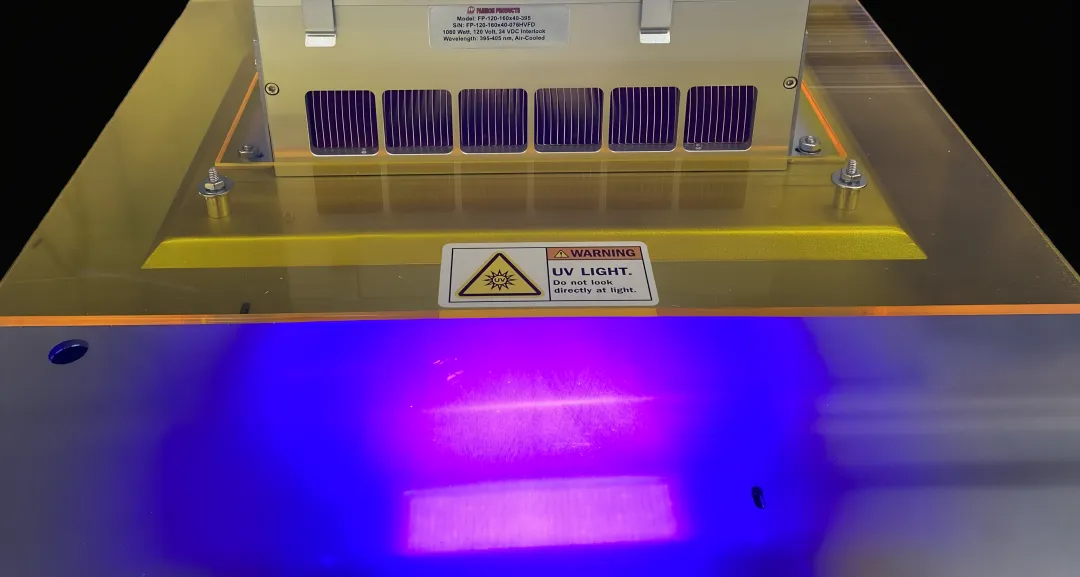

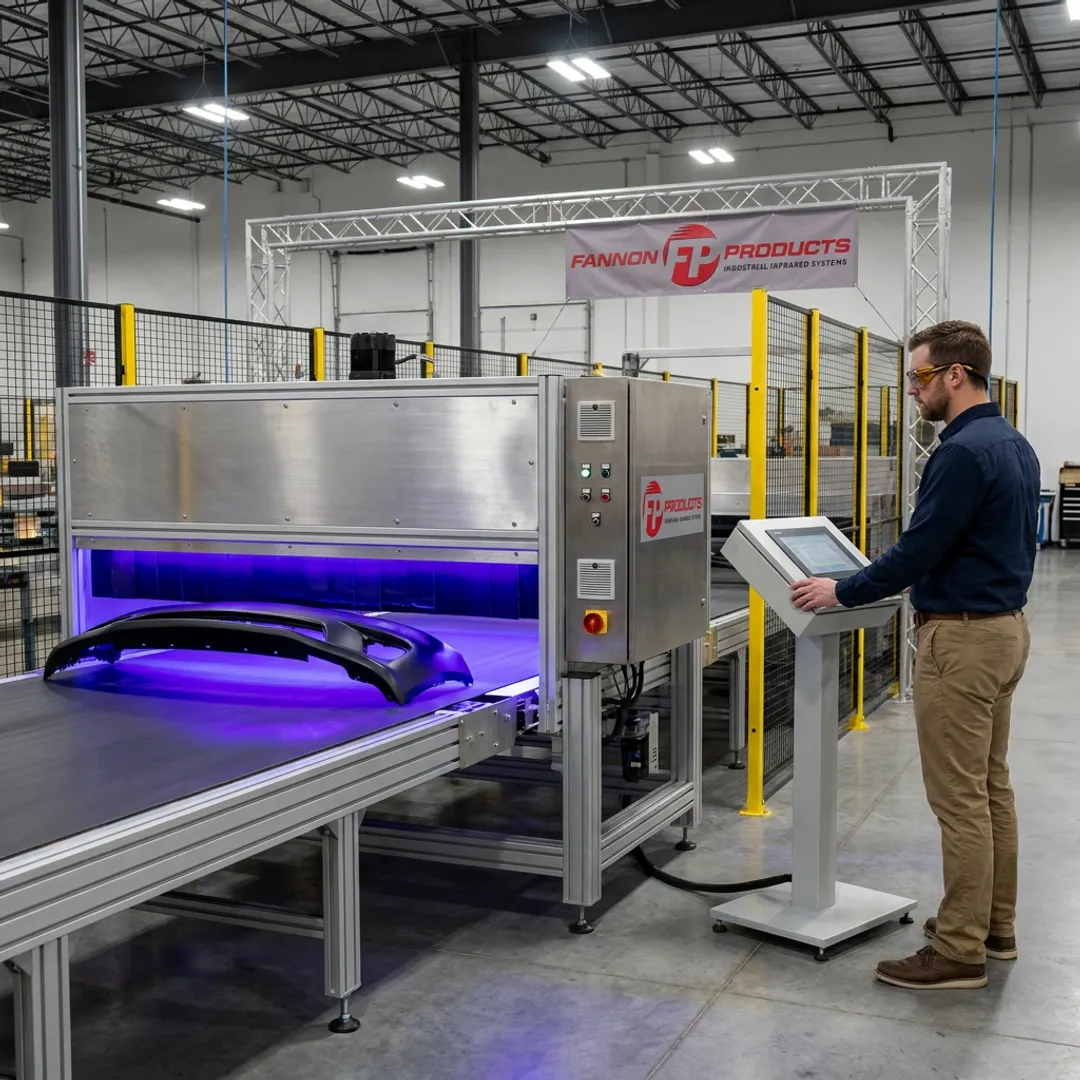

OmniCure UV Curing Systems are used for curing UV LED inks in screen printing and inkjet printing operations, paint curing in automotive and plastics applications, and general industrial UV coating processes. Their focused output and modular sizing make them suitable for both commercial print shops and high-volume manufacturing production lines requiring reliable, repeatable cure results.

Fannon Products' UV LED Curing Systems are available in three curing module sizes: 3-inch (80x40mm emitting window, 540W), 6-inch (160x40mm emitting window, 1080W), and 9-inch (240x40mm emitting window, 1620W). Each module operates at a power intensity of 16W/cm², allowing selection based on substrate width and line speed requirements.

All UV LED Curing System models operate at a wavelength of 395–405nm. This near-UV range is specifically optimized for activating a broad range of UV-reactive inks and coatings commonly used in screen printing, inkjet printing, and industrial coating applications, ensuring thorough and consistent curing performance.

All Fannon Products UV LED Curing Systems feature an air-cooled design. This eliminates the need for water lines, chillers, or complex cooling infrastructure, significantly simplifying installation and daily operation. Air cooling also reduces maintenance requirements and overall system footprint, making these units well-suited for integration into existing printing or manufacturing lines.

Fannon Products UV LED Curing Systems are available in two voltage configurations: 120 Volt (for 3-inch and 6-inch module models) and 220–230 Volt (for the 9-inch module model). The transport interlock on all models supports 24 VDC or dry contact integration, ensuring compatibility with a wide range of press control systems.

Yes. Fannon Products UV LED Curing Systems are designed for standalone or new installation configurations and include a 24 VDC or dry contact transport interlock for seamless integration with most commercial and industrial printing presses. Their modular sizing and straightforward air-cooled design allow retrofitting onto screen printing, inkjet, and other UV press platforms.
