LED Quartz Lamps

Fannon Products offers quartz infrared lamps ranging from 250W to over 6,000W. Screen printing replacement lamps typically run 1,000W to 2,000W, while Heidelberg press lamps span 1,800W to 6,950W. Custom wattages are also available for specialized industrial process heating requirements.

Short-wave infrared lamps operate at higher filament temperatures (around 4,100°F) with instant response, making them ideal for applications requiring rapid heat-up. Medium-wave lamps operate at lower temperatures and are less color-sensitive, making them better suited for screen printing with light and dark inks and plastisol-based applications.

Fannon Products' quartz infrared lamps are rated for 5,000+ hours of operation. This applies across replacement lamp lines for M&R flash dryers, Heidelberg presses, inkjet dryers, and custom-engineered systems. Proper installation, operating orientation, and voltage matching all contribute to achieving the full rated lamp life.

Yes. Fannon Products manufactures direct replacement infrared lamps for a wide range of OEM equipment including Heidelberg Speedmaster presses, M&R flash dryers, HP Jet Fusion 3D printers, and inkjet dryer systems from Fannon, Cogent/Research, Iamsco, Kirk Rudy, and RSI. All lamps are made to exact OEM specifications.

Quartz infrared lamps are available with three reflector options: a 24K gold reflector for maximum directional efficiency saving 23.5% in energy costs, a high-temperature white oxide reflector for broad heat distribution, or clear quartz with no reflector for open-fixture installations. Custom reflector combinations are available on request.

Yes. Fannon Products can manufacture quartz infrared lamps in virtually any heated length under 40 inches, across a wide range of wattages (250W to 6,000W+) and voltages (115V to 600V), in single or twin-tube designs, and with or without integral gold or white oxide reflectors. Custom orders are supported by direct technical consultation with their engineering team.

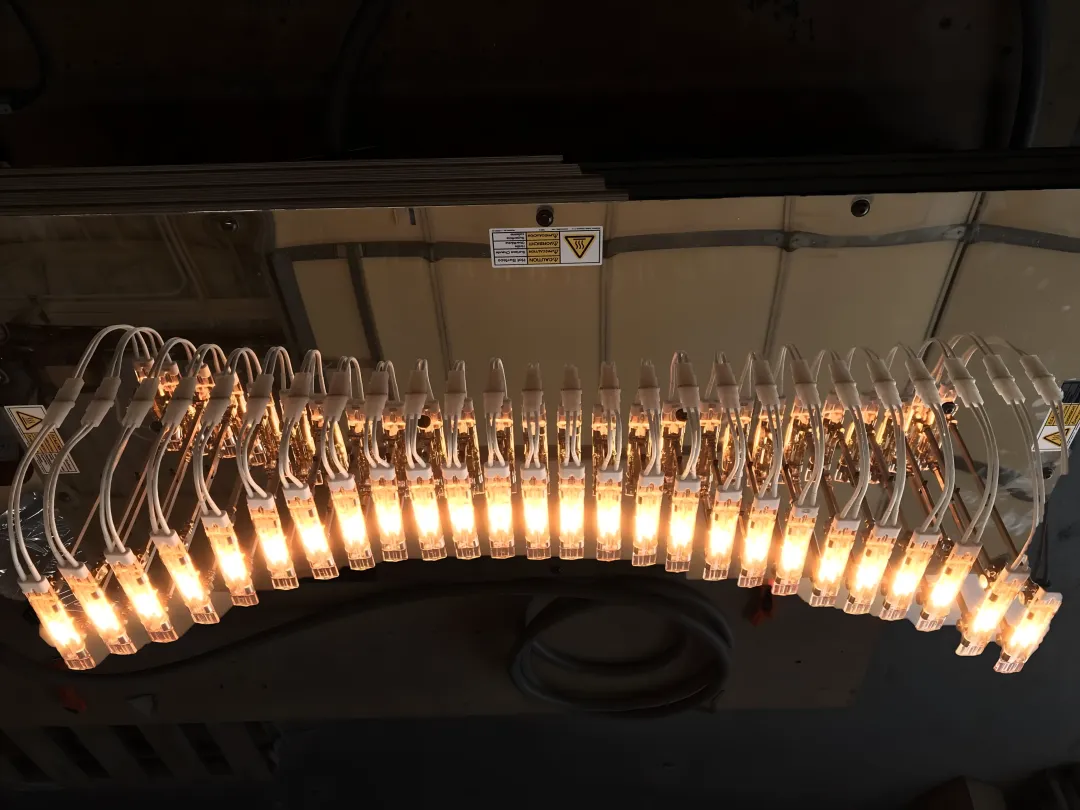

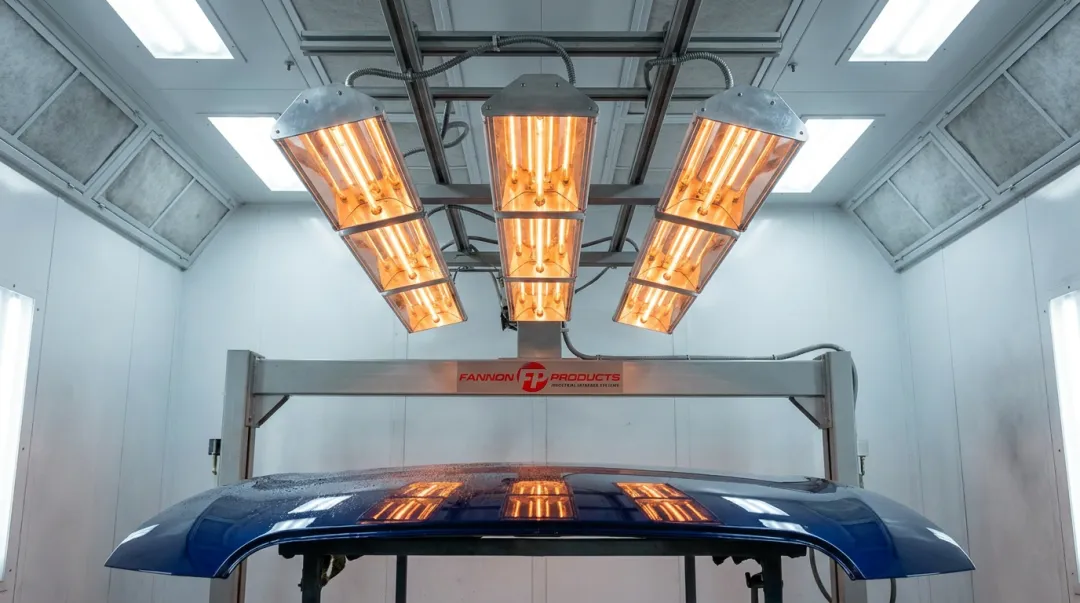

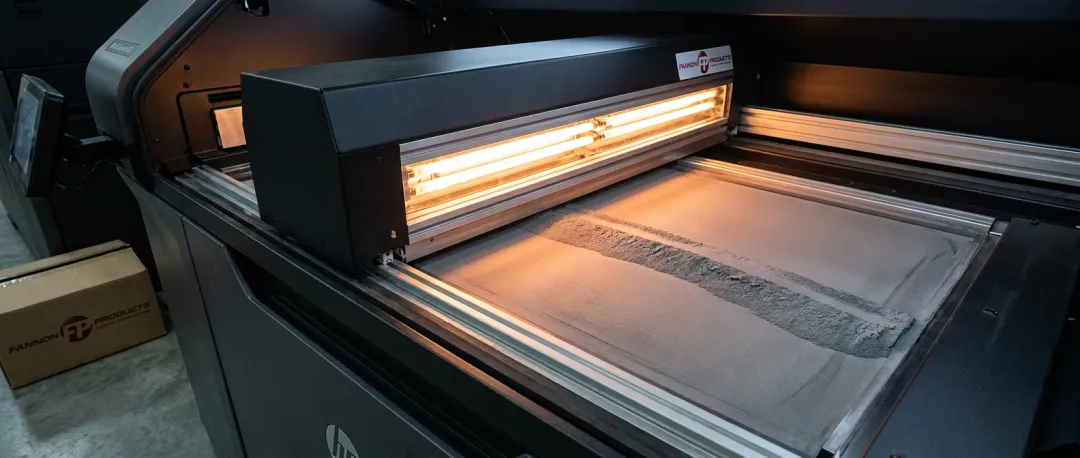

Fannon Products' quartz infrared lamps serve a broad range of industries, including printing and inkjet drying (Heidelberg presses, M&R flash dryers, commercial inkjet systems), automotive and plastics (curing primer, color, and clear coats, plus thermoforming and plastic welding), industrial process heating, and 3D printing (HP Jet Fusion fusing lamp replacements).
