Short Wave Infrared Tubes — Quartz Emitters

A short wave infrared quartz emitter is a high-intensity heat source consisting of a tungsten coil filament sealed inside a quartz tube. Operating at color temperatures up to approximately 4,100°F, it emits energy in the short-wave infrared spectrum (0.78–1.4 µm), delivering instant-on response and 96% radiant efficiency ideal for rapid industrial heating and drying processes.

Short-wave emitters use a tungsten filament and heat up instantly, making them ideal for applications requiring rapid cycling. Medium-wave emitters operate at lower temperatures with a slower warm-up and are better suited for heat-sensitive materials. Fast medium-wave emitters offer a compromise — quicker response than standard medium-wave with lower peak temperatures than short-wave, useful for delicate substrates.

Fannon Products' short wave infrared quartz emitters are rated for 5,000+ hours of operation. Service life depends on operating conditions such as voltage consistency, mounting orientation, and duty cycle. Horizontal and vertical mounting are both supported, and the quartz construction provides good resistance to thermal shock, further extending functional life.

Fannon Products offers quartz infrared emitters ranging from 250W to 6,000W and above. Available voltages include 115V, 120V, 208V, 230V, 240V, 277V, 400V, 415V, 480V, 575V, and 600V. Custom wattage, voltage, and wiring configurations (series or parallel) are available upon request to match virtually any industrial application requirement.

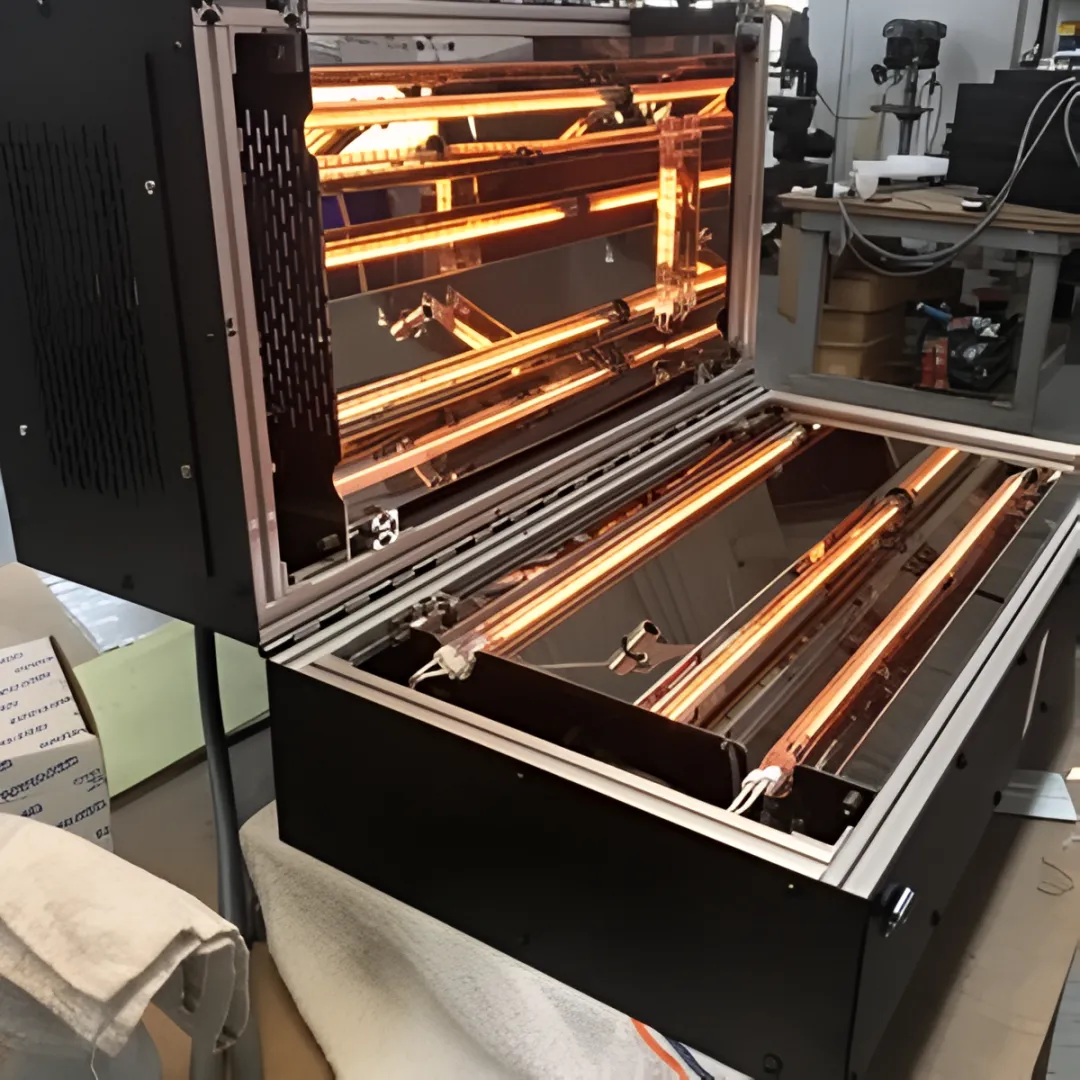

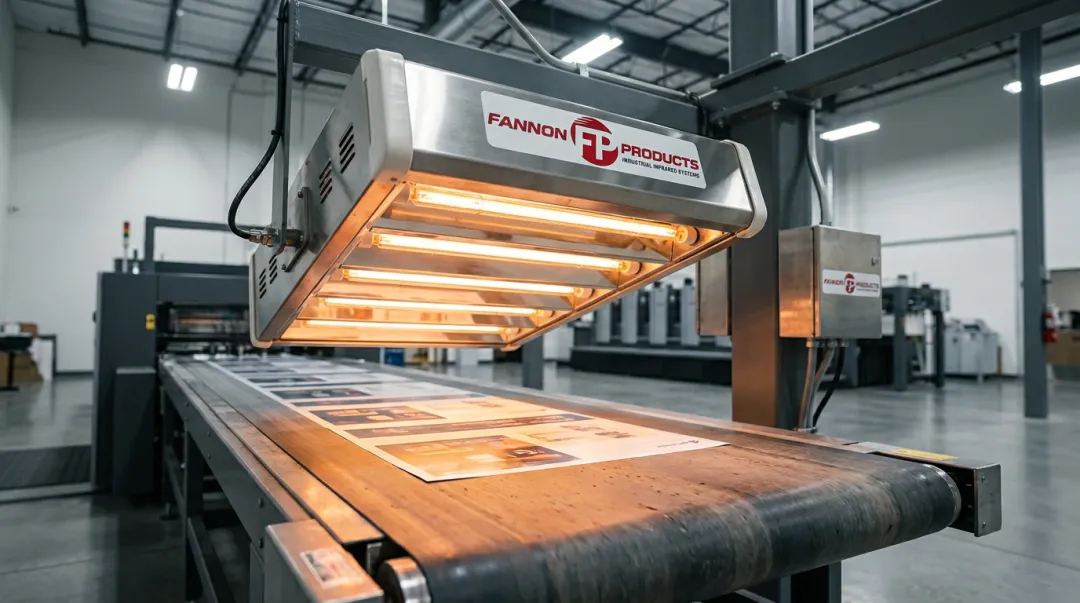

Short wave infrared quartz emitters are used across a broad range of industries including automotive (primer, color coat, powder coat curing), plastics (welding, forming, softening), printing (ink drying, silk screening), food processing (baking, pasteurizing, dehydrating), electronics (reflow soldering), textiles (web drying, finishing), glass-ceramics (safety glass heating, mirror drying), and agricultural applications (incubating, space heating).

Yes. Fannon Products specializes in custom-engineered quartz infrared emitters and complete systems. Customers can specify heated length, quartz tube size (5/8", 1/2", 3/8" O.D., 23mm×11mm, 33mm×15mm), wattage, voltage, reflector type (24K gold, white oxide, or clear quartz), and wiring configuration. Full custom system design and engineering services are also available.

Yes. Fannon Products' Goldenrod short-wave infrared lamps feature an integral 24K gold reflector that directs virtually all infrared energy toward the work surface, eliminating the need for a secondary reflector. This directional design saves 23.5% in energy expense compared to standard lamps and also keeps surrounding equipment and belt surfaces cooler, reducing ancillary thermal load on the system.
