UV LED Curing Systems

A UV light curing system is an equipment assembly that generates and directs ultraviolet light onto a substrate to cure UV-reactive materials such as inks, resins, and coatings. Fannon Products' UV LED curing systems include modular curing heads, power supplies, and transport interlocks for seamless integration into printing and manufacturing lines.

LED-based UV curing is generally superior for industrial applications. UV LED systems consume less power, generate less heat, have a longer operational lifespan, and deliver consistent wavelength output (395–405nm). Unlike traditional UV mercury lamps, they require no warm-up time, contain no mercury, and are far more energy-efficient for continuous production environments.

Yes, UV resin can be cured with LED systems provided the LED wavelength matches the photoinitiator in the resin. Fannon Products' UV LED systems emit at 395–405nm, which is compatible with a wide range of UV-reactive resins and inks used in screen printing, inkjet printing, and industrial coating applications.

Fannon Products' UV LED curing systems are available in three modular sizes: 3 inch (80x40mm emitting window), 6 inch (160x40mm), and 9 inch (240x40mm). All modules deliver 16W/cm² power intensity and operate at 395–405nm wavelength, making them suitable for varying substrate widths and production line configurations.

The UV LED curing systems are available in 120V configurations for the 3-inch (540W) and 6-inch (1080W) models, and a 220–230V configuration for the 9-inch (1620W) model. All models feature a 24 VDC or dry contact transport interlock for safe and reliable integration into existing production equipment.

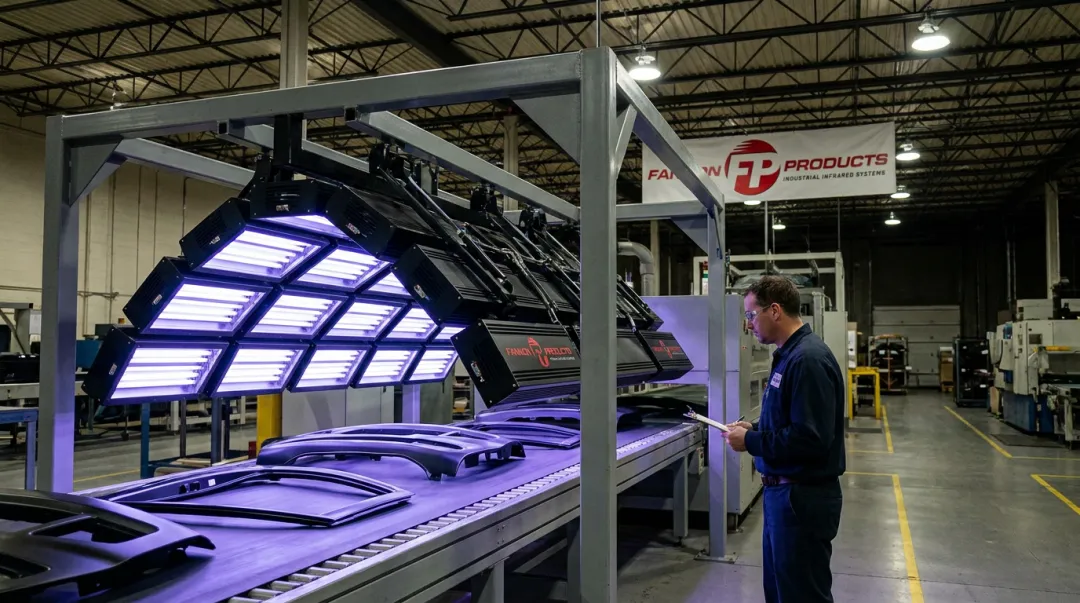

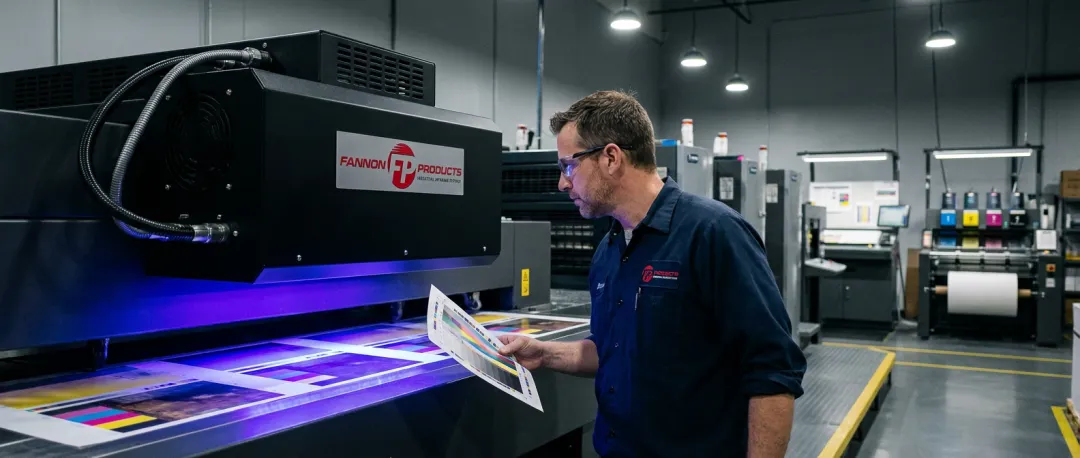

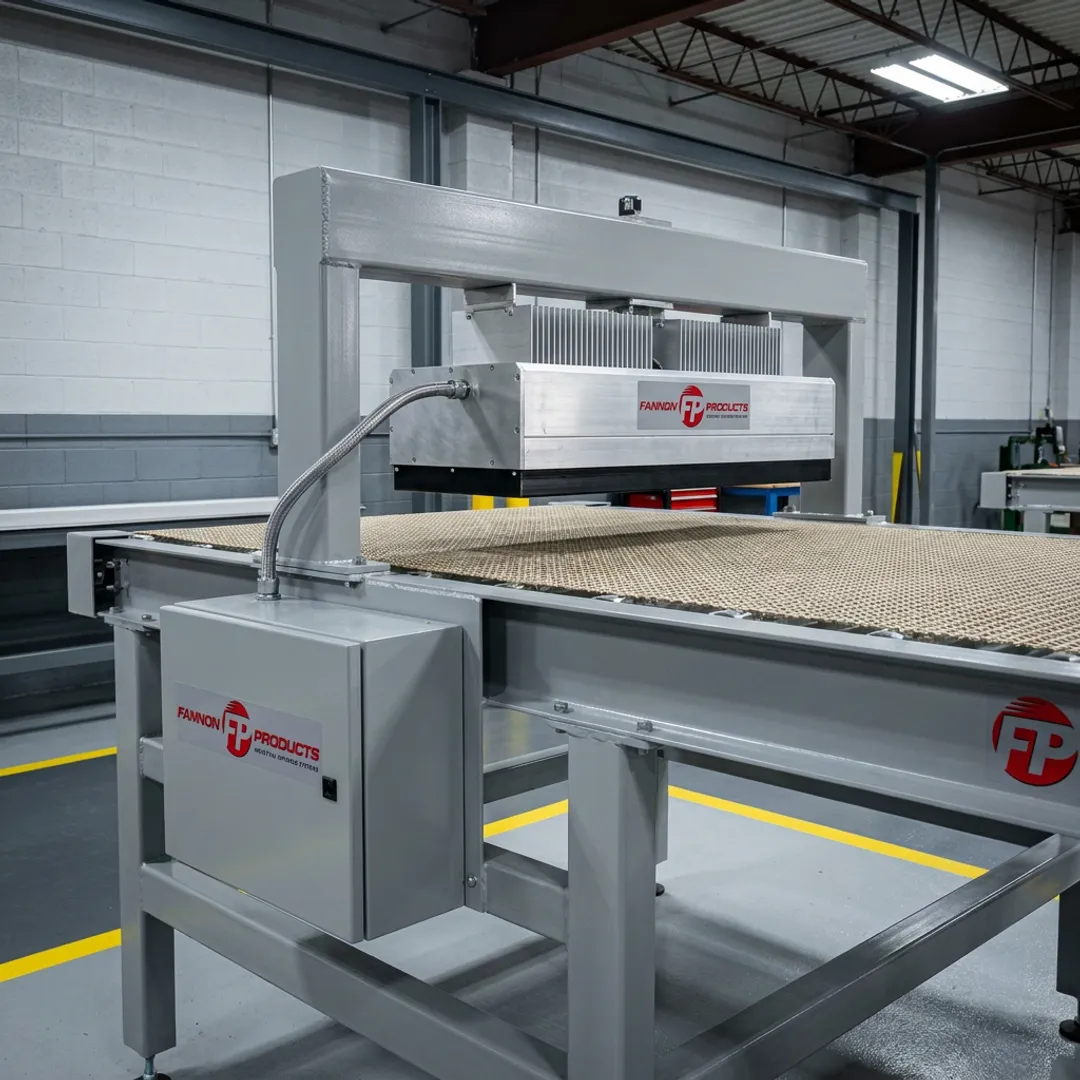

Fannon Products' UV LED curing systems are designed for screen printing, inkjet printing, paint curing, and commercial and industrial printing operations. They are widely used in the printing, automotive, and plastics industries, where fast, reliable, and energy-efficient curing of UV inks and coatings is essential to production quality and throughput.
