1500 Watt Quartz Lamps — Halogen Double Ended

A quartz lamp is a type of halogen or infrared lamp that uses a quartz glass envelope instead of standard glass. Quartz withstands the extreme operating temperatures generated by the tungsten filament — up to 4,000°F — and transmits infrared energy efficiently. Quartz lamps are widely used in industrial heating, drying, curing, screen printing, and automotive coating applications due to their high radiant efficiency and instant response.

A double ended halogen quartz lamp has electrical contacts (end caps or terminals) at both ends of the tube rather than at a single base. This design allows the lamp to be mounted horizontally in fixtures, provides balanced heat distribution along the full heated length, and is the standard format for most industrial infrared dryer and process heating systems.

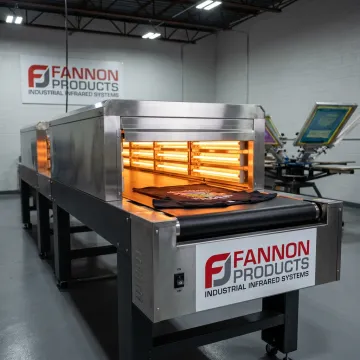

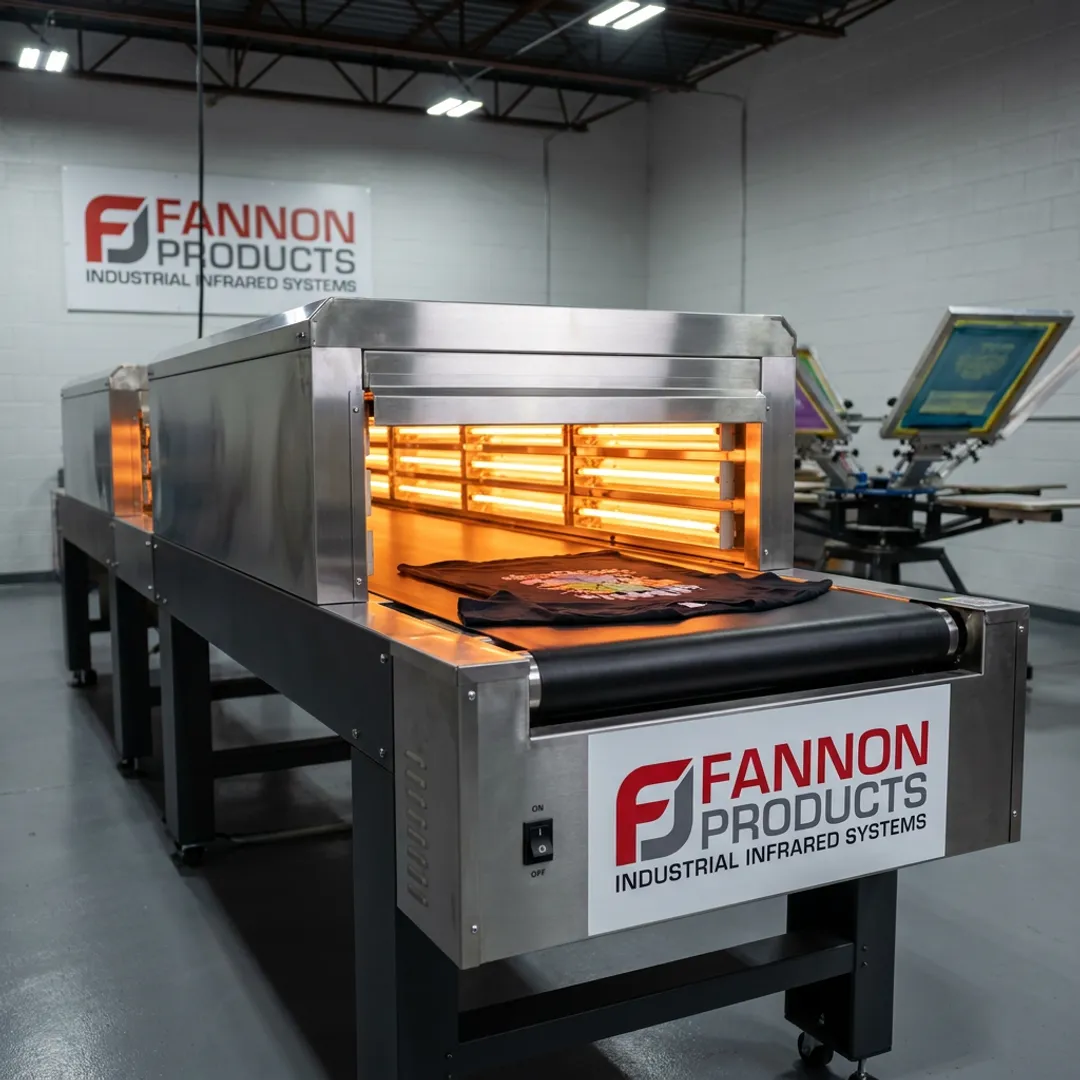

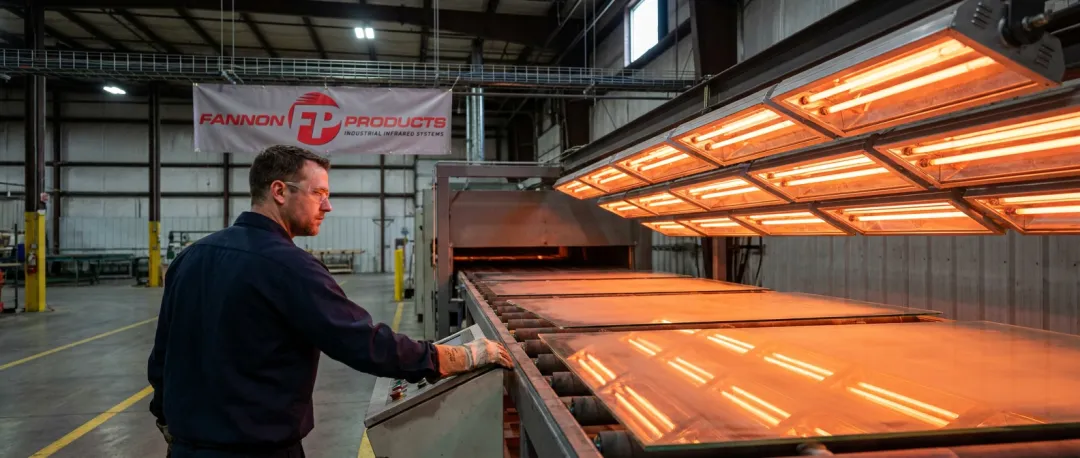

Fannon Products manufactures quartz infrared lamps ranging from 250W to over 6,000W. Common wattages include 1000W, 1500W, and 2000W for screen printing and inkjet drying applications. Custom wattage configurations are available to meet specific process heating requirements across automotive, plastics, printing, glass-ceramics, and other industries.

Fannon Products' quartz infrared lamps are available in a broad range of voltages including 115V, 120V, 208V, 230V, 240V, 277V, 400V, 415V, 480V, 575V, and 600V. This flexibility ensures compatibility with virtually any industrial electrical system in the U.S. and internationally, making direct replacement straightforward regardless of facility configuration.

Fannon Products' quartz infrared lamps are rated for 5,000+ hours of operation. Lamp life is influenced by operating voltage, duty cycle, mounting orientation, and handling. Proper installation and avoiding direct contact with the quartz envelope (which can cause premature failure from skin oils) are key factors in achieving maximum service life.

Yes. Fannon Products manufactures direct replacement quartz infrared lamps for equipment from many OEM brands including M&R, Heidelberg, Fannon, Cogent/Research, Iamsco, Kirk Rudy, RSI, Tempco, Anderson Thermal, DryStar, Eltosch Grafix, Helios, Italquartz, Heraeus, and Emitted Energy. Custom lengths, wattages, and voltages are also available if an exact OEM match is required.
